Our Facility List

Turning Centers & Lathes

Download Printable Facility List

	Equipment	Capabilities
	(1) OLYMPIA V80 VERTICAL TURNING AND MILLING CENTER	84" diameter table Max swing 118" 80” under rail (24) ATC live spindle “C” axis 30HP Fanuc 18T 80,000 max table capacity
	(2) OLYMPIA V60 VERTICAL TURNING AND MILLING CENTER	60" table diameter Max swing 70" Max turning height 82" under rail Main drive 80HP RPM 3-350 Max turning torque 23,230 lbs (24) ATC Live spindle with "C" axis 25 HP drive FANUC 18T with 640 meters' memory Glass scales
	(1) MORI-SEIKI SL-6 CNC LATHE	FANUC 11TE control 50 HP 4.1" bore thru spindle 6-1800 RPM 35” swing and 35” between centers
	(2) MORI-SEIKI SL-75A CNC LATHES	Fanuc 11T & 16T Controls 75 HP 4.1" bore through spindle 6-1,800 RPM Turning envelope of 35.8” swing and 60.9” between centers
	(1) CLAUSING-COLCHESTER MASCOT 2.0M LATHE	14.5 HP 20-2,000 rpm 3.0" bore through spindle Digital readout Turning envelope of 18.1" swing over bed 28.7" swing over gap 10.5" swing over saddle 80" between centers
	(1) CLAUSING-COLCHESTER MASCOT 2.0M LATHE	14.5 HP 20-2,000 rpm 3.0" bore through spindle Digital readout Turning envelope of 18.1" swing over bed 28.7" swing over gap 10.5" swing over saddle 120" between centers
	(1) WASINO WILDCAT LATHE	10 HP 23-1,800 RPM 2 1/8" bore through spindle 19 1/4" swing over bed 28" swing over gap 10 1/4" swing over saddle 31 1/2" between centers
	(1)CADILLAC LATHE	7 HP 12" chuck 2" bore through spindle 16" swing over bed 36" between centers
	(1) HOMMA VTL	60” chuck 63” swing 49” under rail Fanuc 18T
	(1) MORI-SEIKI SL 603 LATHE	40” swing 80” between centers Live milling
	(2) PROTO-TRAK CNC LATHE	24” swing 60” between centers

Machining Centers & Milling Machines

	Equipment	Capabilities
	(1) HERMLE C62 Mill Turn	X axis 47.24” Y axis 51.81 Z axis 35.43” C axis 0- 360 Degree Rotary A axis +- 130 Degree Tilt 9000 RPM Spindle Milling 69 HP Turning 95 HP
	(1) MITSUBISHI MVR30 Bridge Mill	5-sided milling Y axis 110” X axis 165” Z axis 27” W axis 31” 60” under rail 99.5 through bridge 6000 RPM spindle Fanuc 18iMB control 1° right angle head indexing 55,000 table capacity
	(2) DOOSAN DB130C HORIZONTAL BORING MILL	X axis 118" Y axis 78" Z axis 62" W axis 27" Max table capacity 33,000 lbs.
	(2) TOSHIBA-CNC HORIZONTAL BORING MILL MODEL BTD-110.R16	X axis of 98" Y axis of 59" Z axis of 57" W axis of 19" 55" x 63" full 4th axis rotary table Spindle dia. 4.3" 40 hp., with spring neck turning capability
	(2) MORI-SEIKI MH-63 HORIZONTAL MACHINING CENTERS	Fanuc16M control Two 24.8" square rotary pallets with .001° minimum indexing capability 30 hp. 60-6,000 rpm Machining envelope of 39.4" X axis 33.5" Y axis and Z axis stroke of 36.2"
	(1) OKUMA MC-5VA VERTICAL MACHINING CENTER	15hp 30-4,000 rpm X axis of 41.3" Y axis of 20.1" Z axis of 22"
	(1) VIPER 2100 CNC MACHINING CENTER	X axis 81" Y axis 41" Z axis 41"
	(1) MATSURA MC-710V VERTICAL MACHINING CENTER	Yasnac 3000G Control 7 HP 50-6,000 RPM X axis 28" Y axis 13.7" Z axis stroke 18.7" Work area 43.3" by 14.7"
	(1) NOMURA HORIZONTAL BORING MILL	X axis of 40" Y axis of 40" Z axis of 32" W axis of 20" 35 3/8 by 39 3/8 rotary table Spindle diameter 3.35"
	(1) SOUTHWESTEN TRAK DPM5X3 CNC BED MILL

Water Jet & Cutting Equipment

	Equipment	Capabilities
	(1) OMAX-WATERJET CUTTING SYSTEM	Bed capacity 55"x100"
	(1) OMAX-WATERJET CUTTING SYSTEM	Bed capacity 80"x160"
	(1) OMAX-WATERJET CUTTING SYSTEM	Bed capacity 80"x 240"
	(1) HEM-SAW PS18/144A TRAVELING ARM PLATE SAW 12FT TRAVEL
	(1) HEM-SAW SERIES H120A AUTOMATIC BANDSAW
	(1) MARATHON COLD CIRCULAR SAW
	(1) WALKER-TURNER VERTICAL BANDSAW
	(1) JET BANDSAW MBS-1014W, ANGULAR VICE
	(1) KLINGELHOFER VERSA-KUT MODEL WK11 COLD CIRCULAR SAW

Welding Equipment Robotic

	Equipment	Capabilities
	(1) SMARTTCP WELDING ROBOT	KUKA MODEL KH-6-ARC KUKA CONTROLLER MODEL KRC2 KPC-ED05 43’X 10’X 6’ 2 6000LB POSITIONERS GANTRY MODEL 07-7657
	(2) TRUMPF TRUDISK 8002 8000 W LASER	ABB ROBOT MODEL IRB2400 MODEL IRC5 SN 24-53878 2 ABB POSITIONERS MODEL IRBP-2000 1/2” S/S FULL PENETRATION @ 40” PER MINUTE

Welding Equipment

	Equipment	Capabilities
	(3) MILLER SYNCROWAVE 351 TIG WELDER
	(4) MILLER DELTA WELD 452 MIG WELDER
	(1) MILLER INVASION 456 MIG WELDER
	(10) LINCOLN IDEALARC 250 ARC WELDER
	(10) LINCOLN SQUAREWAVE TIG 355
	(1) WORTHINGTON WELDING POSITIONER	6,000 lb. capacity 90° tilt
	(1) PANDJIRIS WELDING POSITIONER	3000 lb. capacity 9090° tilt
	(2) ALL-FAB WELDING POSITIONER	1200 lb. capacity 90° tilt
	(1) ALL-FAB WELDING POSITIONER	2500 lb. capacity 90° tilt
	(1) ARONSON HD2534 WELDING POSITIONER	2500 lb. 90° tilt
	(4) VANGUARD TRP 30F WELDING POSITIONER	6000 lb. 90° tilt

Fabricating Equipment

	Equipment	Capabilities
	(1) HYPERTERM MAX 100 PLASMA ARC CUTTING SYSTEM

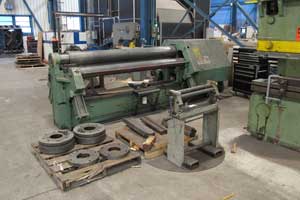

	(1) MONTGOMERY PLATE ROLL	3/8" x 96"
	(1) AKYAPAK PLATE ROLL 1/2 X 100 INCHES.
	(1) AKYAPAK APK-180 ANGLE ROLL 3” SQUARE BAR CAP
	(1) AKYAPAK APK 240 HYDRAULIC ANGLE ROLL 4 1/2 SQUARE
	(1) PACIFIC PRESS 550 TONS 19 FOOT

Stress Relief Equipment

	Equipment	Capabilities
	(1) IPSEN 2 BAR HORIZONTAL VACUUM FURNACE MODEL H 6672	48” X 48” X 72” WORK ZONE OR 56”W X 25”H X 72”D OPERATING TEMP 500-2400°F 3500 LBS AT 2400°F
	(1) AIR FURNACE 850 DEGREES 5FT CUBIC MICHIGAN OVEN
	(1) VIBRODYNE VIBRATORY STRESS RELIEVING MACHINE	Formula 62

Inspection And Test Equipment

	Equipment	Capabilities

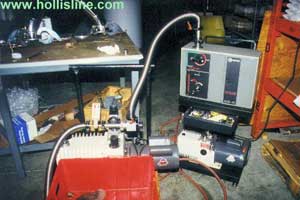

	(1) VARIAN 938-41 PORTA-TEST LEAK DETECTOR
	(1) VARIAN 959-50 PORTA-TEST LEAK DETECTOR
	(2) VARIAN SD-700 VACUUM PUMP

Other Support Equipment

	Equipment	Capabilities
	(1) INTERCONT PARTS WASHER
	(1) O.K. TOOL & CUTTER GRINDER
	(1) WILTON DRILL PRESS
	(1) RUSH DRILL GRINDER MODEL 252
	(1) BROWN & SHARPE 618 MICROMASTER SURFACE GRINDER 6”X18”
	(1) MAS RADIAL DRILL
	(1) GREENARD ARBOR PRESS, 7 TON CAPACITY
	(1) ROCKWELL MODEL 15 DRILL AND TAPPING MACHINE

Software

	Equipment	Capabilities
	(2) MASTERCAM X9
	(3) SOLIDWORKS PROFESSIONAL 2016 X64
	(1) PC-DNC (DISTRIBUTED NUMERICAL CONTROL SYSTEM)
	(5) KUBOTEK KEYCREATOR V6.0.0 (CAD)
	(1) HP 500PS E-SIZED PLOTTER
	(1) INVENTOR 2016 WITH MECHANICAL

Lift Equipment

Equipment	Capabilities
(1) YALE ELECTIC LIFT TRUCK	4000lb. capacity
(1) MITSUBISHI LIFT TRUCK	9000lb. max cap
(1) DAEWOO LIFT TRUCK	6000lb. max cap
(1) DOOSAN LIFT TRUCK	6000lb. max cap
(1) LINDE LIFT TRUCK	9000lb. cap
(4) OVERHEAD CRANES	6000lb. cap
(10) OVERHEAD CRANES	10,000lb. cap
